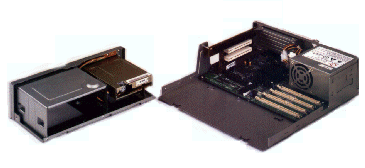

The FIC Oasis system allows easy access for installing storage
devices, memory and add-in cards.

FIC's Oasis barebones system is the ideal starting point to build a low-cost PC for a wide range of applications and customers. Typical customers could be families looking for a reliable first or second PC or Corporate managers searching for a way to standardize on smaller footprint network nodes. Due to its compact size, the FIC Oasis system makes an ideal point of sale system, especially where space requirements call for something smaller than a standard tower case.

And remember, with MediaGX™ technology, VGA graphics and 16-bit stereo sound are integrated in the processor!

Features	Specifications
Processor	Cyrix MediaGX™ processor
System Memory Capacity	Up to 64MB FPM/EDO DRAM using four 72-pin SIMM sockets
BIOS	Phoenix BIOS; APM 1.2
VGA	Integrated PCI VGA controller supporting resolutions up to 1280x1024x256 colors
Audio	Integrated 16-bit Plug & Play sound controller
I/O Ports	Two serial ports One IrDA port One EPP/ECP parallel port One PS/2 keyboard connector One PS/2 mouse connector One game port One RF TV & one S-video connector; NTSC & PAL support One microphone jack One line-out jack One optional RJ45 LAN connector One 15-ipn VGA port
Expansion slots	One 32-bit PCI slot and one shared ISA/PCI slot
FDD	Standard 3.5" 1.44MB Mode 3 Additional storage bays for CD-ROM and Hard Drive
Networking	Optional integrated 10baseT 10Mbps LAN module with wake-on-LAN feature
Fax/Modem	Optional integrated 33.6Kbps Fax/Modem module
Power Supply	50W
Power Management	Doze/Sleep/Suspend Modes; HDD Power down
Case Size	Approximately 12" x 14" x 3.25" (W x D x H)

Contact Information
First International Computer of America, Inc.
980A Mission Ct. Fremont, CA 94539
1-800-342-2636 Ext. 8818
www.fica.com
