Cyrix 6x86MX™ Processor Processor Brief
The 6x86MX™ processor offers significant enhancements over the 6x86™ processor. These enhancements enable the 6x86MX™ processor to achieve higher performance at any given clock speed.
The 6x86MX™ design quadruples the internal cache size to 64-KBytes, triples the TLB size, and increases the frequency scalability to 200 MHz and beyond, relative to the 6x86 processor. Additionally, it features 57 new MMX instructions that speed up the processing of certain computing-intensive loops found in multimedia and communication applications. The 6x86MX™ processor also contains a scratchpad RAM feature, supports performance monitoring and allows caching of both SMI code and SMI data. It delivers optimum 16-bit and 32-bit performance while running Windows® 95, Windows NT, OS/2®, DOS, UNIX® and other operating systems.

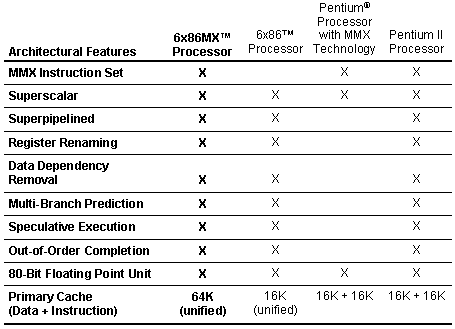

The 6x86MX™ processor features a superpipelined architecture that increases the number of pipeline stages to reduce timing constraints and increase frequency scalability. Advanced architectural techniques include register renaming, out-of-order completion, data dependency removal, branch prediction and speculative execution. These design innovations eliminate many data dependencies and resource conflicts to achieve higher performance when executing both 16-bit and 32-bit software.

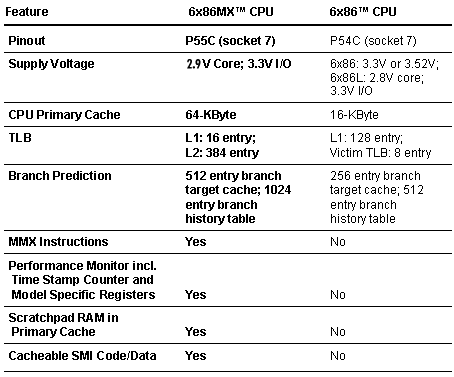

Feature Comparison: 6x86MX™ and 6x86™ Processors
|
